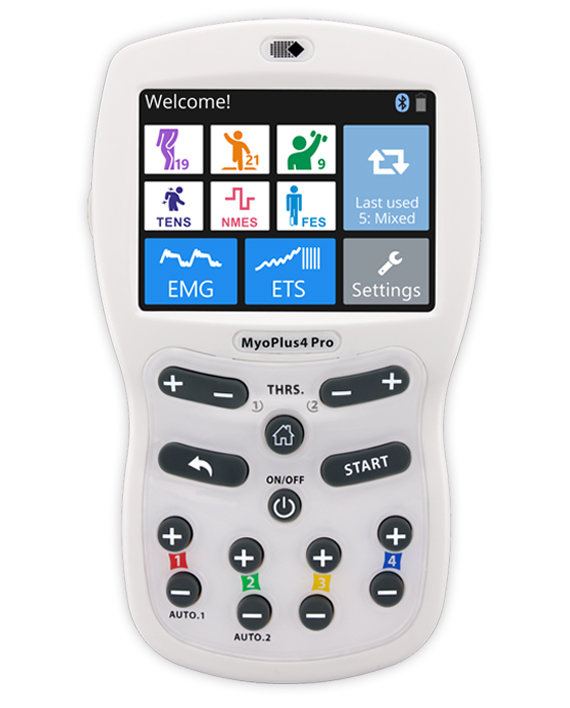

The NeuroTrac® MyoPlus 4 Pro is a professional medical device that uses EMG biofeedback and neuromuscular stimulation devices designed for clinics, rehabilitation centres, and structured home therapy. It combines 2-channels of EMG, 2-channels of ETS, and 4-channels of STIM offering comprehensive support for pain management, incontinence treatment, and neuromuscular rehabilitation.
The clinical indications of the different modes of the NeuroTrac® MyoPlus 4 Pro devices are:
EMG
NMES
TENS
ETS
NeuroTrac® MyoPlus 4 Pro is also used for non medical purposes, including:
Model number: MYO420P. This product is available through selected distributors who are able to provide training and support.
The NeuroTrac® MyoPlus 4 Pro is a dual-channel EMG, ETS, and four-channel neuromuscular stimulation device designed for assessment and rehabilitation. Channels 1 and 2 measure EMG activity or deliver stimulation, while Channels 3 and 4 provide stimulation only. In EMG mode, the device measures muscle activity in microvolts and provides visual and audio biofeedback to guide voluntary contractions and relaxation. Users can follow work and rest prompts, track performance, and review detailed statistics. The touchscreen interface allows easy program selection, parameter adjustment, and access to preset or customized protocols.

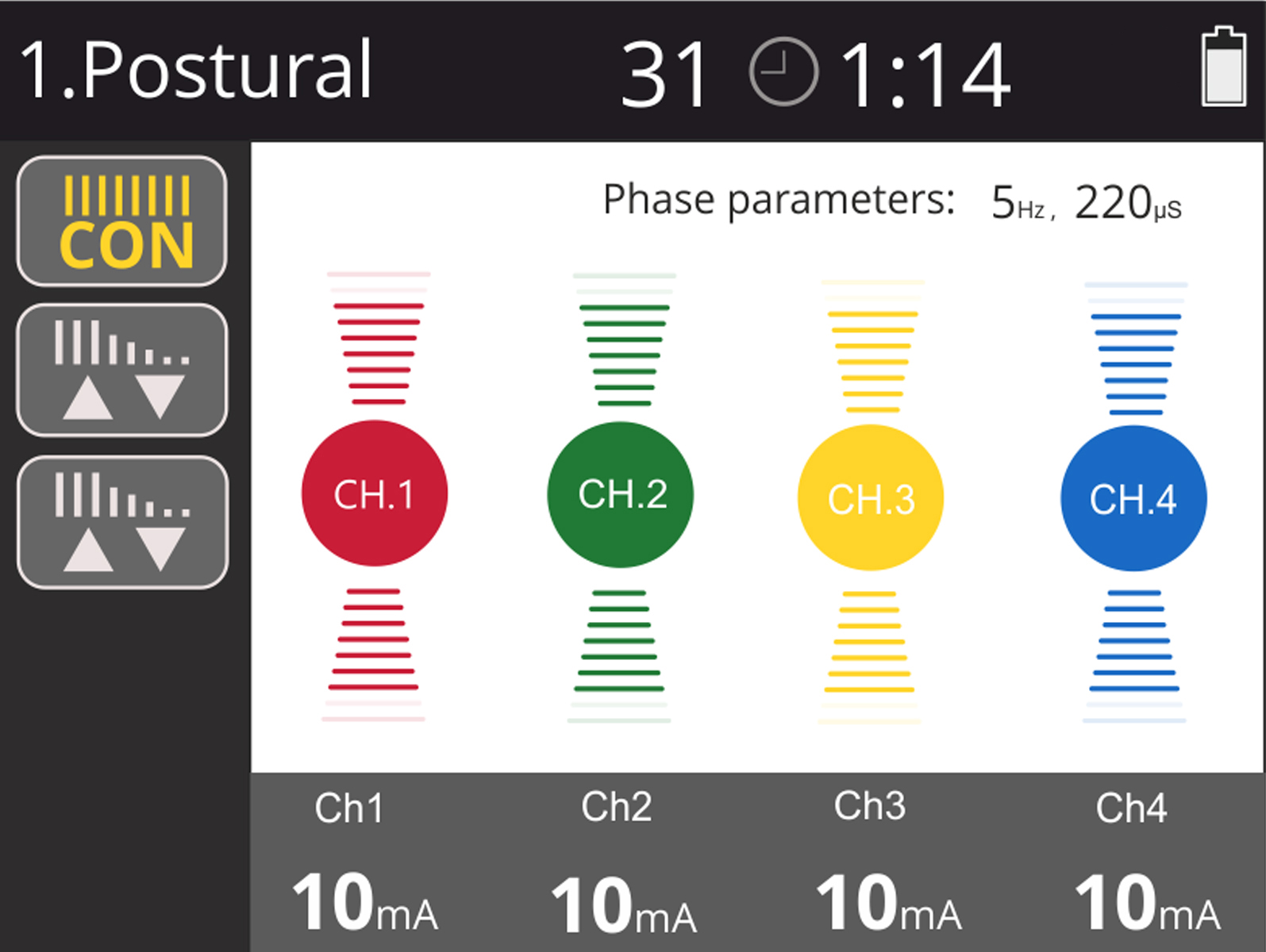

The device also delivers NMES, TENS, and ETS. In ETS, voluntary contraction above a set EMG threshold triggers stimulation to support muscle effort. Programs can include multiple phases such as continuous, synchronized, alternating, or modulated stimulation. Adjustable parameters include frequency, pulse width, intensity (mA), ramp times, and work/rest cycles.
Battery: 4 x 1.5V AA. Low battery indication at 4.2-4.4 volts +/- 0.2 volts, automatic shut off when voltage drops below the low indication. Replace the batteries immediately! The device goes off automatically when not in use (energy saving): for example when in settings and no key pressed over 1 minute, when in stimulation mode (home screen) and all channels are 0mA.
Expected average battery set life [of standard 800 mAh, alkaline]: a. MyoPlus2: 12-16 hours in STIM, 25 hours in EMG mode. b. MyoPlus4: 8-16 hours in STIM, 25 hours in EMG mode.
Environmental Conditions for use: +5 to +40 degrees Centigrade. 15-90% Humidity.
Environmental conditions for storage & transport: -25 to +70 degrees Centigrade. 15-90% Humidity.
Physical Dimensions: Length 150 mm, Width 89 mm, Depth 35 mm
Weight: MyoPlus 4, MyoPlus 2 device: 0.16 Kg (without batteries).
