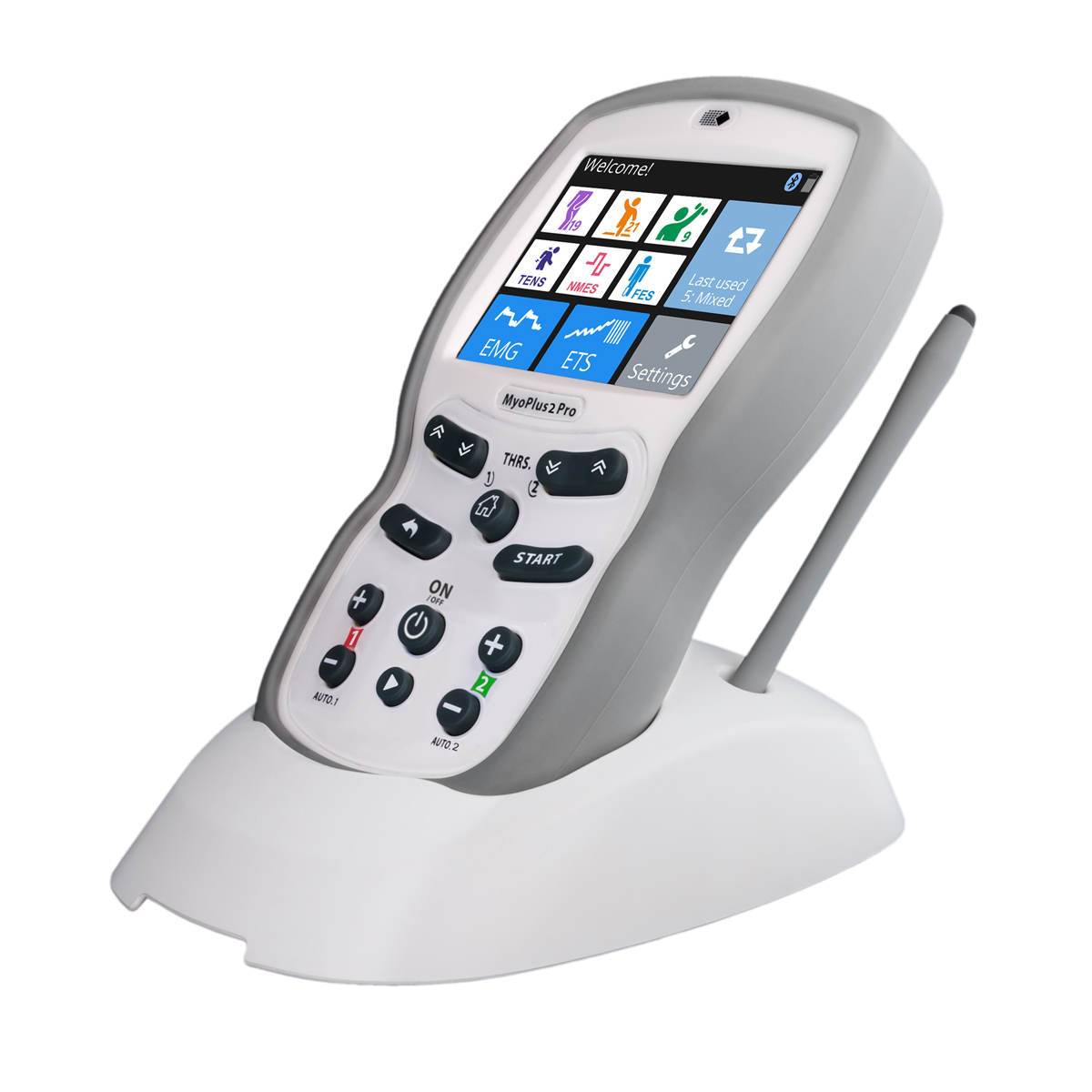

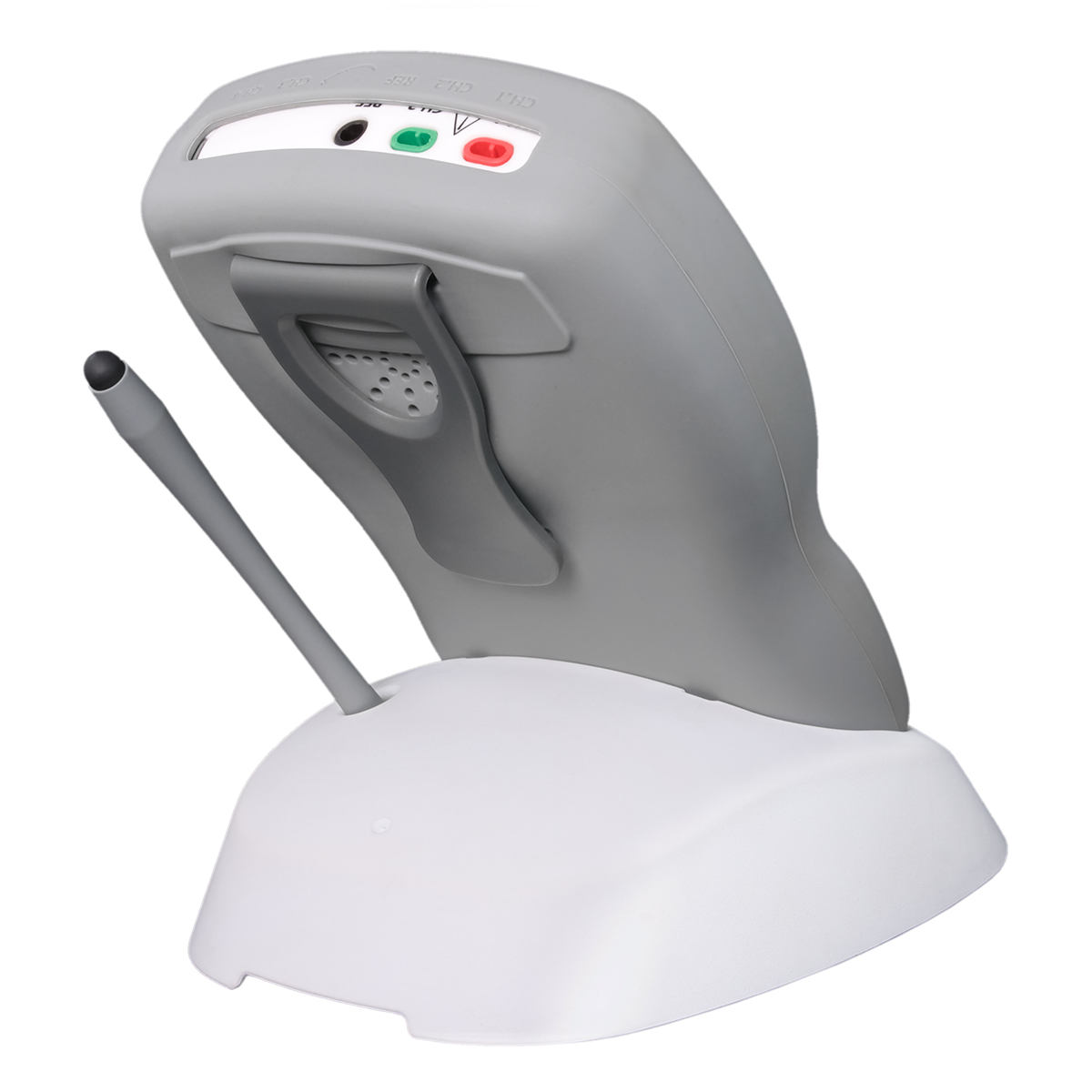

The NeuroTrac® MyoPlus 2 Pro is a professional dual-channel EMG biofeedback and neuromuscular stimulation device designed for clinics, rehabilitation centres, and structured home therapy. It combines 2 channels of EMG biofeedback with 2 channels of stimulation, offering comprehensive support for pain management, incontinence treatment, and neuromuscular rehabilitation.
The clinical indications of the different modes of the NeuroTrac® MyoPlus 2 Pro devices are:
EMG
NMES
TENS
ETS
It is also used for non medical purposes, including:
Model number: MYO220P. This product is available through selected distributors who are able to provide training and support.
The NeuroTrac® MyoPlus2 Pro combines dual-channel EMG biofeedback with dual-channel neuromuscular stimulation in one professional unit. It measures muscle activity in microvolts (μV) through surface electrodes or probes and displays real-time feedback on a colour touchscreen.
During EMG mode, users voluntarily contract and relax muscles while the device records performance. In ETS (EMG Triggered Stimulation), stimulation begins automatically when a preset EMG threshold is reached, supporting and sustaining the contraction.
In STIM modes (CON, SYN, ALT, MOD), the device delivers controlled electrical pulses with adjustable frequency, pulse width, ramp time, and work/rest cycles. It operates on constant current output with safety features such as open electrode detection, mA limits, and battery protection. Bluetooth connectivity enables session storage and progress tracking via PC software.
Battery: 4 x 1.5V AA. Low battery indication at 4.4 volts +/- 0.2 volts, automatic shut off when voltage drops below the low indication. Replace the batteries immediately! The device goes off automatically when not in use (energy saving): for example when in settings and no key pressed over 1 minute, when in stimulation mode (home screen) and all channels are 0mA.
Expected average battery set life [of standard 800 mAh, alkaline]:
Environmental Conditions for use: +5 to +40 degrees Centigrade. 15-90% Humidity.
Environmental conditions for storage & transport: -25 to +70 degrees Centigrade. 15-90% Humidity.
Physical dimensions: Length 150 mm, Width 89 mm, Depth 35 mm.
Weight: MyoPlus 2 device: 0.16 Kg (without batteries).
